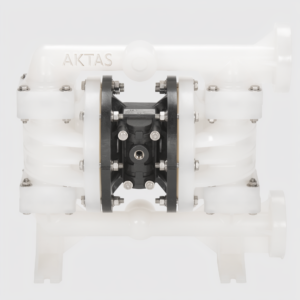

D100 – 1 in. PLASTIC PUMP

Product Overview

The AODD Pump is a compact, air-powered pump designed for reliable transfer of liquids in industrial environments. Its threaded connections, self-priming capability, and ability to handle solids make it suitable for flexible installation and a wide range of fluid-transfer tasks.

Detailed Technical Specifications

• Air Inlet: 1/4″ FNPT
• Liquid Inlet: 1/2″
• Liquid Discharge: 1/2″
• Connection Type: FNPT/FBSPT (Threaded)
• Maximum Suction Lift: 15 ft-H2O (4.6 m-H2O) dry; 31 ft-H2O (9.4 m-H2O) wet

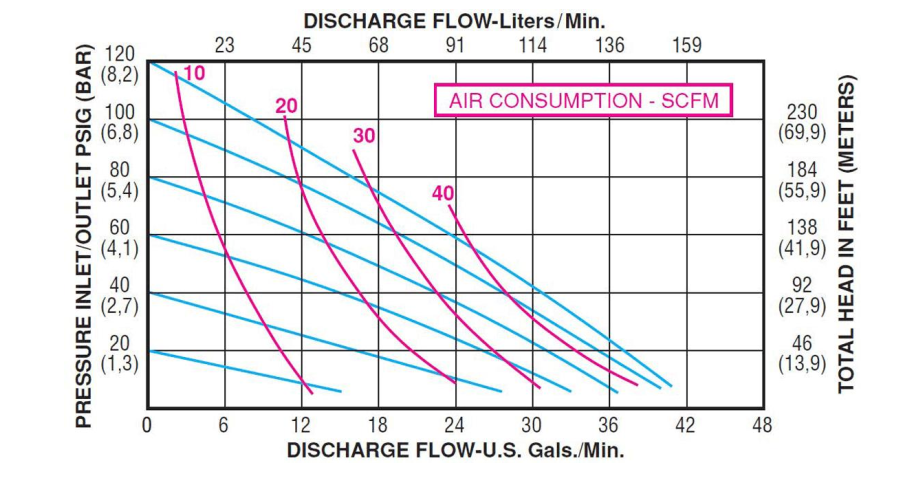

• Maximum Flow Rate: 41 gpm (155.8 lpm)
• Maximum Pressure: 120 psi (8.2 bar)
• Maximum Solids Diameter: 1/8″ (3.2 mm)
• Displacement per Stroke: 0.03 gal (0.04 L)
• Weight: Aluminium: 10 lbs (4.5 kg); Wet SS: 20 lbs (9.1 kg)

Installation and Maintenance

1. Verify air supply, pressure rating, fluid compatibility, and connection sizes.
2. Install the pump securely and support connected piping.
3. Inspect connections and seals before startup and check for leaks.
4. Operate within the stated flow and pressure limits.
5. Before servicing, isolate the air supply, relieve pressure, and drain the pump.

Confirm material compatibility and operating conditions before selecting the pump for a specific fluid or process.
